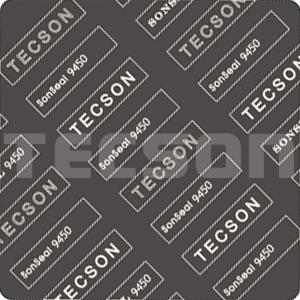

Sonseal 9450
Sonseal 9450 is a standard gasket material for most industry applications. The main components are graphite and aramide fibres, bonded with NBR. Sonseal 9450 is a very compact gasket material with excellent pressure-resistant and temperature-resistant.

Description

Technical Data:

Colour	Black
Anti-stick coating	Both sides
Maximum Temperature	450 degrees Celsius
Maximum Pressure	100bar
Density	1.65 g/cm³
Compressibility ASTM F36A	7 ~ 17 %
Recovery ASTM F36A	45%
Gas leakage DIN3535 mg/m*s	0.001 mg/m*s
Thickness increase Oil IRM 903 150 deg C for 5 hrs	10% Max.
Thickness increase ASTM Fuel B 23 deg Cfor 5 hrs	15 % Max.

Supply Data:

Thickness	0.4 ~ 5 mm
Sheet size	1500*1500 mm

And provide cut-type gasket on request.
