- Fiberglass Fabric
They are asbestos free, cause no harm to health, making fiberglass products ideal replacements to asbestos ones. They will not burn, rot, mildew or deteriorate and resist most acids. They have low coefficient of thermal expansion and relatively high thermal conductivity.
Description

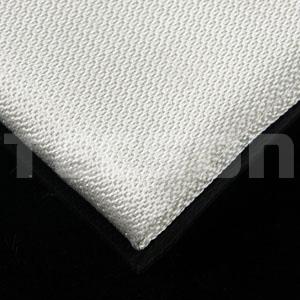

Non texturized fiberglass woven fabric
The fabrics made of non texturized yarns appear smooth and have higher weight than the texturized ones. They can be produced by different kinds of weaving---plain, twill, satin. They are widely used in thermal insulation and can be treated in different ways in order to meet specific purposes.
| Plain weave |  |
| Satin weave |  |
| Twill weave |  |
Specification
| Style | Thickness (mm) | Weight (g/m2) | Weight (oz/y2) | Weave |
| SF1020 | 0.2 | 200 | 5.9 | plain |
| SF1041 | 0.4 | 430 | 12.7 | twill |
| SF1060 | 0.6 | 600 | 17.7 | plain |
| SF1062 | 0.6 | 650 | 19.5 | satin |
| SF1080 | 0.8 | 800 | 23.6 | plain |
| SF1081 | 0.8 | 880 | 26 | satin |
| SF1130 | 1.3 | 1300 | 38.3 | satin |
| SF1170 | 1.7 | 1750 | 51.6 | satin |
