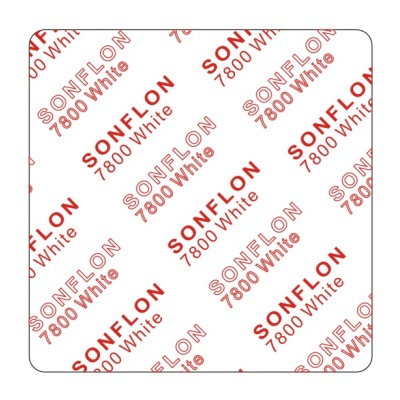

Sonflon 7800 White
  • Sonflon 7800 White

  • Sonflon 7800 is a structured PTFE Gasket Sheet manufactured by a unique process which provides a high level of fibrillation to overcome the creep relaxation and cold flow problems associated with normal (skived or moulded) PTFE sheets.

    Sonflon 7800 is produced from virgin PTFE resin filled with Barium Sulfate.


Description

Advantages:

  • Universal gasket sheet for all applications. It is suitable for all types of flanges, nearly all media, and a broad temperature range and even for applications with the toughest demands on purity. It is inherently clean and non-toxic.

  • Sonflon 7800 is suitable for service with a wide variety of aggressive fluids, including hydrocarbons, moderate acids and strong caustics, solvents, water, steam, hydrogen-peroxide, refrigerants, etc.

  • The high purity of this gasket sheet makes it excellently suitable for the food and pharmaceutical industry.

  • Sonflon 7800 is not subject to ageing or weathering. It can be stored indefinitely.


Technical Data:

PropertiesTest StandardUnitSonflon 7800
Color

White
Temperature
degrees C-210o to 260
pH

0-14, except molten alkali metals and elemental fluorine at high temperatures and pressures.
P*TThickness 1.5mmBar * degrees C12000

Thickness 3.0mmBar * degrees C86000
DensityASTM D 792g/cm3
2.9
CompressibilityASTM F 36 A%10
RecoveryASTM F 36 A%40
Tensile Strength
ASTM 152MPa14
Creep DeformationASTM F 38%11
SealabilityDIN 3535mg/s`m0.015


Supply Data:
Thickness: 1.5; 2.0; 3.0;4.0; 5.0mm
Size: 1500mm*1500mm; 1600mm*1600mm
