Styles:

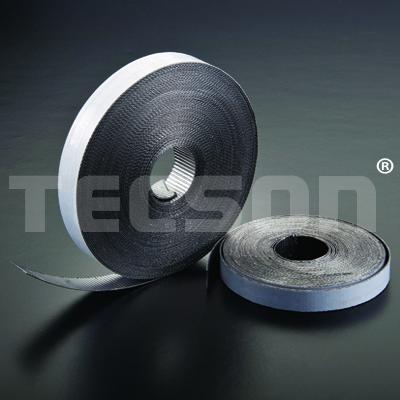

• Style PFT SonGraf Plain Tape


• Style PFTC SonGraf Crinkle Tape


The tapes can be adhesive backed.

Applications:

• Filler for Spiral Wound Gaskets.


• In-situ pump and valve gland packing.


• Manufacture of graphite Die-formed rings.


• Facing material for kammprofile gaskets.


• Filler for metal jacketed type gaskets.


• Gasket for static seal.

Technical Data:

Cautions:
Do not use tegether with soft gaskets such as compressed asbestos free fiber joint sheets

Recommended Joint Type:

1. Gasket surface has to be clean and free from grease.


2. Cut both ends of the tape straight (90 degrees) and simply overlap as shown below.



3. Then torque bolts in a star pattern in several stages, the final adjustment should be done in a circular direction to the full torque value.
