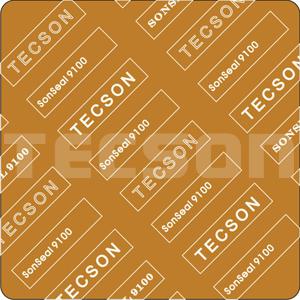

- Sonseal 9100
High quality gasket jointing containing mixture of temperature resisting mineral and aramid fibers with special NBR binder. A general material suitable for sealing oils, non-aggressives gases and basic chemicals.
Description
Technical Data:
| Colour | Yellow |
| Anti-stick coating | One Side |
| Maximum Temperature | 380 degrees Celsius |
| Maximum Pressure | 80 bar |
| Density | 1.8 ~ 2.0 g/cm3 |
| Compressibility ASTM F36A | 10% |
| Recovery ASTM F36A | 45% |
| Gas leakage DIN3535 | 0.06 mg/m*s |
| Thickness increase Oil IRM 903 150 deg C for 5 hrs | 5 % Max. |
| Thickness increase ASTM Fuel B 23 deg C for 5 hrs | 5 % Max. |
Supply Data:
| Thickness | 0.4 ~ 5 mm |
| Sheet size | 1500*1500 mm |
And provide cut-type gasket on request.
