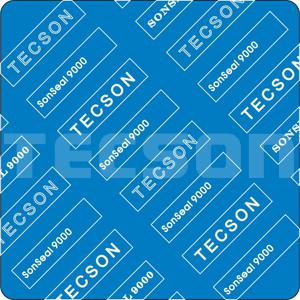

- Sonseal 9000
The economic style. Manufactured from mixture of organic fibres with mixture NBR binder.
All of industries at lower parameters.
Description
Technical Data
| Color | Blue |
| Anti-stick Coating | One Side |
| Maximum Temperature | 200 degrees C |
| Maximum Pressure | 60 bar |
| Density | 1.8 ~ 2.0 g/cm3 |
| Compressibility ASTM F36A | 10% |
| Recovery ASTM F36A | 45% |
| Gas leakage DIN3535 | 0.06 mg/m*s |
| Thickness increase Oil IRM 903 150 degrees C for 5 hrs | 5 % Max. |
| Thickness increase ASTM Fuel B 23 degrees C for 5 hrs | 5 % Max. |
Supply Data:
| Thickness | 0.4 ~ 5mm |
| Sheet size | 1500*1500 mm |
And provide cut-type gasket on request.
